Cessna Citation CJ1

Table of Contents

Cessna Citation CJ1

Exterior Dimensions

Side View

Top Down View

Front View

Exterior Dimensions
Overall Length 42 FT 6 IN
Overall Height 13 FT 8 IN
Wingspan 46 FT 8 IN
Horizontal Tail Span 18 FT 5 IN
Nose to Trailing Edge (T-Hangar Constrain)
Landing Gear Base (Nose to Main) 15 FT 4 IN
Landing Gear Tread (Main to Main) 13 FT

Interior Dimensions

AEROCOR - Learning Center - Cessna Citation CJ1 - Cross-Section

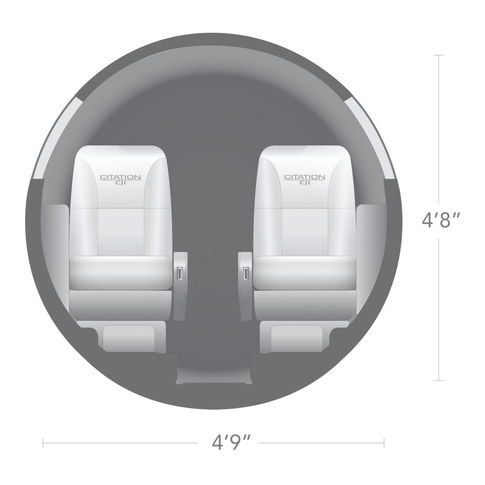

Cross Section View

AEROCOR - Learning Center - Cessna Citation CJ1 - 6 Seat Configuration

6 Seat Configuration: 2 Crew Seats, RH FWD Side-Facing Seat, 4 Pedestal Seats, and Optional LH Belted-Toilet

AEROCOR - Learning Center - Cessna Citation CJ1 - 7 Seat Configuration

7 Seat Configuration: 2 Crew Seats, RH FWD Refreshment Center, 4 Pedestal Seats, and Optional LH Belted-Toilet

Internal Dimensions
Cabin Width 4 FT 9 IN
Cabin Length 15 FT 9 IN
Cabin Height 4 FT 8 IN
Entry Width 2 FT
Entry Height 4 FT 3 IN
Total Baggage Volume 54.6 FT3
  • Cabin Baggage Compartment
4 FT3
  • Nose Baggage Compartment
20.4 FT3
  • Aft Baggage Compartment
30.2 FT3

Design Weights and Capacities

Design Weights Capacity
Maximum Ramp Weight 10,700 lbs
Maximum Takeoff Weight 10,600 lbs
Maximum Landing Weight 9,800 lbs
Maximum Zero Fuel Weight 8,400 lbs
Basic Empty Weight 6,460 lbs
Maximum Payload (No Pilot) 1,940 lbs
Useful Load (No Pilot) 4,240 lbs
Fuel Capacity (useable) at 6.70 lb/gal 3,220 lbs
Useful Load w/full fuel (No Pilot) 1,020 lbs

Performance

Performance
Takeoff Runway Length (Max. Takeoff Weight, Paved, Sea Level, ISA, Part 25 Normal Category, over a 50 foot obstacle) 3,280 ft
Maximum Altitude 41,000 ft
Maximum Cruise Speed (Mid-Cruise Weight, 33,000 ft, ISA) 380 KTAS @ FL350
NBAA IFR Range (100 nm alternate)(Max. Takeoff Weight, Optimal Climb & Descent, Max. Cruise Thrust at 41,000 feet) 1,250 nm @ FL410
Landing Runway Length (Max.  Landing Weight, Paved, Sea Level, ISA, per Part 25 Normal Category, from a 50 foot obstacle) 2,760 ft

Structural Design Limitations

Limit Speeds
VMO 263 KIAS
MMO Mach 0.71
Flap Extension Speeds
VFE 0° to Takeoff/Approach Extension 200 KIAS
VFE Takeoff/Approach to Landing Extension 161 KIAS
Landing Gear Operating and Extended Speeds
VLO (retracting) 175 KIAS
VLO (extending) 186 KIAS
VLE 186 KIAS
